Shacman F3000 400HP Heavy Duty Dump Truck with 400L Fuel Tank Air Suspension Seat and U-shape Dump Body

Shacman F3000 10 Wheeler 380HP Tipper Truck 30cbm 30tons 6X4 New Dump Truck

Shacman F3000 6x4 400HP Dump Truck

Product Overview

The Shacman F3000 6x4 Dump Truck is engineered for heavy-duty applications in construction, mining, and logistics. With a powerful 400HP engine, reinforced chassis, and large payload capacity, it is ideally suited for Lagos, Nigeria’s demanding road and project conditions.

Main Specifications

• Brand: Shacman

• Model: F3000 6x4 Dump Truck

• Drive Type: 6x4 (Left Hand Drive, optional Right Hand Drive)

• Engine: Weichai WP10.400E32 / 400HP, Euro II/III emission standard

• Horsepower: 400 HP

• Displacement: 9.7L

• Transmission: Fast brand 10JSD/12-speed manual gearbox

• Clutch: Reinforced single dry plate, 430 mm

• Axle:

  • Front Axle: 7.5T

  • Rear Axle: 16T double reduction, hub reduction optional

  • Ratio: 4.77 / 5.73 available

• Suspension: Leaf spring, reinforced, front 9 + rear 12

• Frame: 8 + 8 + 8 mm double-layer high-strength steel

• Steering: Hydraulic power steering, ZF technology

• Brakes: Air brake system, ABS optional

• Cabin: F3000 high-roof cabin with A/C, sleeper, adjustable seats

• Fuel Tank: 400L aluminum alloy

Dump Body

• Type: U-shape or square box

• Box Size: 5600–5800 × 2300 × 1500 mm (customizable)

• Material: High-strength steel Q345 / NM450

• Thickness: Bottom 8–10 mm, side 6–8 mm

• Capacity: 25–30 tons payload

• Hydraulic System: HYVA brand cylinder for fast lifting

Dimensions & Weight

• Overall Dimensions (L×W×H): 8614 × 2490 × 3450 mm

• Wheelbase: 3775 + 1400 mm

• Curb Weight: 12,500–13,000 kg

• GVW (Gross Vehicle Weight): 25,000–30,000 kg

• Max Speed: 80–90 km/h

Applications in Lagos, Nigeria

• Hauling sand, gravel, and asphalt for road projects

• Quarry and mining transport (limestone, granite)

• Bulk material movement in ports (Apapa, Lekki)

• Waste disposal and municipal projects

FAQs

Q1: Can the truck handle Lagos bad road conditions?
Yes, the reinforced chassis, high ground clearance, and heavy-duty suspension make it suitable for both city and rural roads.

Q2: How much fuel does it consume?
Average fuel consumption is 35–38 liters per 100 km, depending on load and terrain.

Q3: Are spare parts available in Nigeria?
Yes. Shacman has authorized spare parts dealers and service partners in Lagos and across Nigeria.

Q4: What about after-sales support?
We provide remote technical guidance, local workshops in Lagos, and quick spare parts supply.

Q5: Can the dump body be customized?
Yes. Box size, thickness, and material can be adjusted based on project requirements.

Q6: What is the delivery time?
Usually 30–40 days after order confirmation.

400L Fuel Tank Dump Truck

Air Suspension Seat Heavy Duty Dump Truck

U-shape Dump Body Tipper Truck

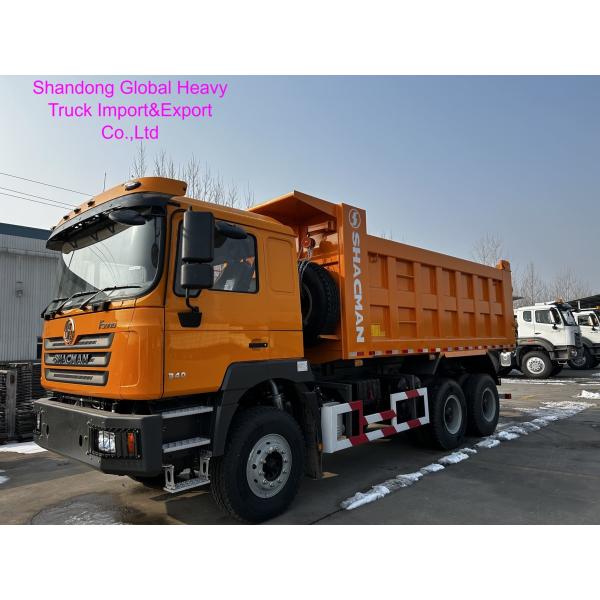

Shacman F3000 400HP Heavy Duty Dump Truck with 400L Fuel Tank Air Suspension Seat and U-shape Dump Body Images
